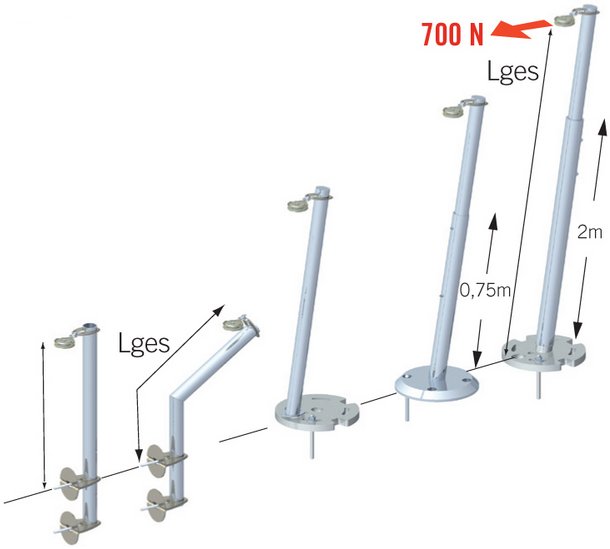

Consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.SQ Stützen in Edelstahl
RD..Rohrdorn ∅50
Lges... Angabe für 700N Belastung. Bei 1300N beträgt Lges 54%.
| Lges | |||||
| ∅33 | 0,4 | 0,4 | - | - | - |
| ∅48 | 1,2 | 1,2 | 3,7 | - | - |
| ∅60 | 2,5 | 2,5 | 4,0 | 3,3 | - |
| ∅60 + RD | 4,0 | 4,0 | 4,0 | 4,8 | 6,0 |

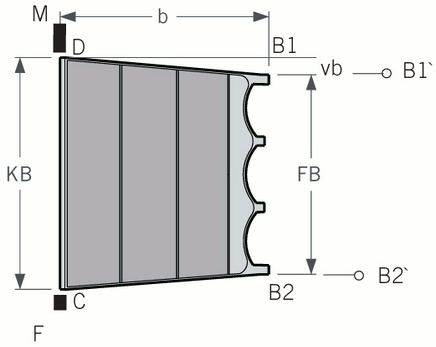

Vierecksegel AX-40
Maximale Abmessung
| AX 40 | |
| FB | max. 5,2m |
| Kanten | min. 2° - 9° |
| vb | 30cm |
| KB | 5,8m |
| MF | 6,4m |
| a,b | 7m |
| =a-b | 10cm |
| AA' | 30cm |
| BB' | 30cm |
| MD | 40cm |
| FC | 5cm |
| max m² | 35m² |
Vierecksegel AX-80
Maximale Abmessung
|
AX 40 |
|
| FB | max. 5,2m |
| Kanten | min. 2°- 9° |
| vb | 30cm |
| KB | 5,8m |
| MF | 6,4m |
| a,b | 7m |
| =a-b | 10cm |
| AA' | 30cm |
| BB' | 30cm |
| MD | 40cm |
| FC | 40cm |
| max m² | 70m² |

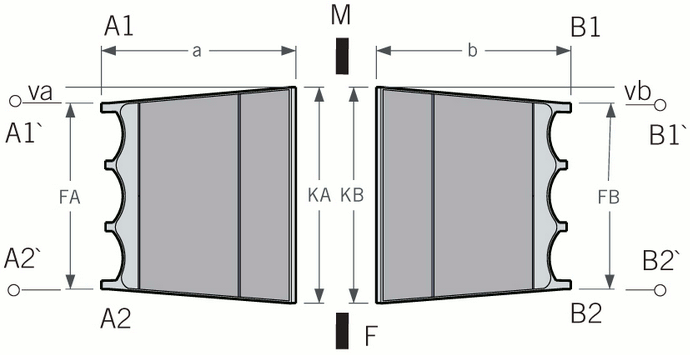

Dreiecksegel
Maximale Abmessung
| SQS-85 | SQS-P4 | SQK-40 | SQK-80 | |
| 1:2(2:1) | 1:1,3 | 1:1,3 | 1:1,3 | 1:1,3 |
| 3:4(4:3) | 1:1,3 | 1:1,3 | 1:1,3 | 1:1,3 |
| 1, 2, 3, 4 | 7,5m | 8,5m | 8,5m | 9,0m |
| KA, KB | 9,3m | 12,9m | 12,9m | 12,9m |
| MF | 10,0m | 13,5m | 13,5m | 13,5m |
| a,b | 6,0m | 7,0m | 7,0m | 7,0m |
| =a-b | ±0,5m | ±0,5m | ±0,5m | ±0,5m |
| AA' | 25cm | 30cm | 30cm | 30cm |
| BB' | 25cm | 30cm | 30cm | 30cm |
| MD | 50cm | 50cm | 40cm | 40cm |
| FC | 20cm | 20cm | 5cm | 40cm |
| max m² | 50m² | 50m² | 50m² | 70m² |
